NEW V2! Quick-disconnect wings allow fast, tool-free assembly and disassembly for convenient transport and field setup.
NEW V2! Formation lights are integrated into the scale LED package for enhanced visual presence during flight.
NEW V2! Factory-installed EG01 6-axis gyro provides a smoother and more confidence-inspiring flight experience.
NEW V2! Wing-mounted CG reference marks and an extended aft CG range make it faster and easier to achieve the optimal centre of gravity.
NEW V2! Updated XI(F) Squadron RAF 100th Anniversary livery featuring the ZJ925 scheme, black spine and dramatic black tail with DXI eagle.
High-performance 8S power system with a 4075-1350Kv brushless inrunner motor and 12-blade 90mm EDF for excellent top-end performance and turbine-like sound.
120A ESC with thrust-reversing function helps reduce landing rollout distance.
Functioning scale airbrake powered by a linear electric actuator for high-alpha manoeuvres and post-landing deceleration.
Scale CNC shock-absorbing retractable landing gear with grey-painted struts and metal trunnions.
Scale sequenced gear doors provide added realism and improved aerodynamics.
Spring-loaded auxiliary air inlets automatically open and close according to air pressure differential to feed additional airflow to the EDF.
Scale LED landing, navigation and formation lights for enhanced realism.
Scale weapon set and pylons included, with 10 pieces in total.
9g and 17g digital metal gear servos provide precise and reliable control response.
Nylon hinges fitted to all control surfaces.
Upgraded pushrod clevises and metal ball-head connectors used throughout.
Package Includes:

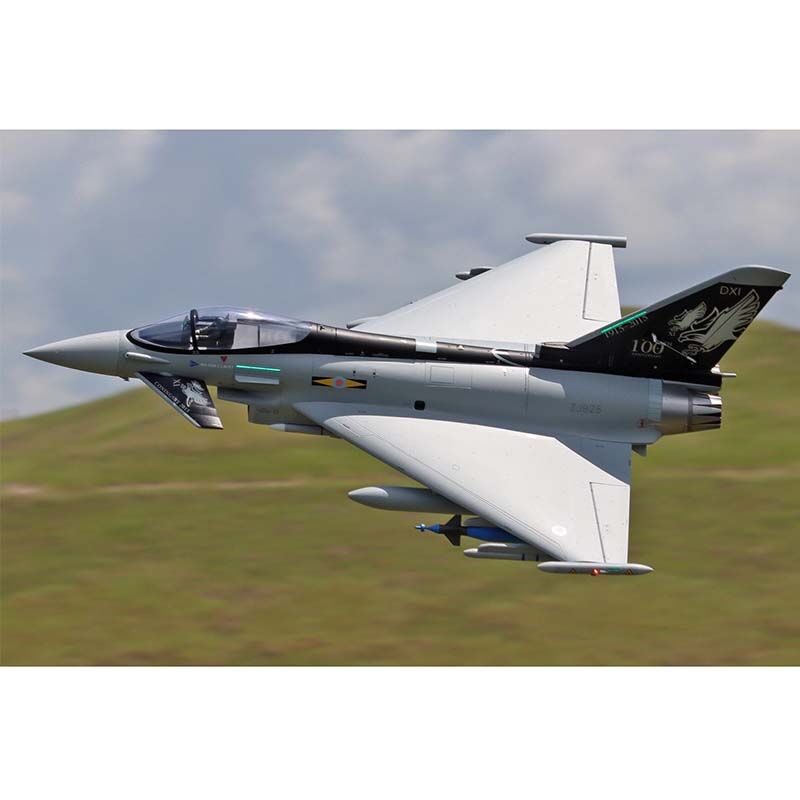

1 x Freewing Eurofighter Typhoon 8S High Performance 90mm EDF Jet V2 with Gyro – PNP
Factory-installed 4075-1350Kv brushless inrunner motor
Factory-installed 12-blade 90mm EDF unit
Factory-installed 120A ESC with 8A UBEC and thrust-reversing function
Factory-installed EG01 6-axis gyro
Installed scale electric retractable landing gear with CNC struts and sequenced gear doors
Factory-installed digital metal gear servos
Installed scale LED navigation, landing and formation lighting system
Scale weapon set and pylons, 10 pieces in total
Required to Complete:
- Minimum 7-channel aircraft radio
- Minimum 7-channel aircraft receiver
- EC5 2-to-1 series adapter
- Minimum 4S-compatible LiPo battery charger
- 2 x 4S 14.8V 5000mAh LiPo batteries with EC5 connectors
| Model Scale | 1/10.6 |
|---|---|
| Wingspan | 1030mm / 40.5in |
| Length | 1450mm / 57in |
| Empty Weight | 3230g (Approx.) |
| CG (Centre of Gravity) | 215mm from the leading edge of the wing root |
| Power System | 4075-1350Kv Brushless Inrunner Motor (Included) |
| Electronic Speed Control | 120A ESC with 8A UBEC and thrust reversing (Included) |
| Propeller / EDF | 12-Blade 90mm EDF (Included) |
| Servos | 9g Digital Hybrid Gear Servo (200mm Lead): Nose Gear Steering, Landing Gear Door 9g Digital Gear Servo (400mm Lead): Left Canard, Right Canard 9g Digital Hybrid Gear Servo (500mm Lead): Rear Cabin Door Left 9g Digital Hybrid Reverse Gear Servo (500mm Lead): Rear Cabin Door Right 17g Digital Metal Gear Servo (100mm Lead): Rudder 17g Digital Metal Gear Servo (300mm Lead): Left Aileron, Right Aileron |
| Landing Gear | CNC Shock-Absorbing Retractable Scale Landing Gear with Metal Trunnions (Included) |
| Required Battery | Option 1: Two 4S 14.8V 5000mAh LiPo Batteries with EC5 Connectors |
| Required Radio | Minimum 7+ Channel Radio |
| Ailerons | Elevons |
| Elevator | Elevons |
| Rudder | Yes |
| Flaps | No |
| Lights | Yes – Navigation, Landing and Formation Lights |
| Hinge Type | Nylon |
| Material | EPO Foam |
| Skill Level | Advanced / Expert |
| Build Time | Approximately 3+ Hours |
| Recommended Environment | Outdoors |
| Recommended Runway Surface | Hard surfaces and short, well-manicured grass |
