The Zeus 90mm EDF 6S PNP sports the new 12-blade 90mm EDF unit with a powerful 3668-1960Kv inrunner motor for high end EDF jet performance.
Full Landing Gear Doors
Full Landing Gear Doors

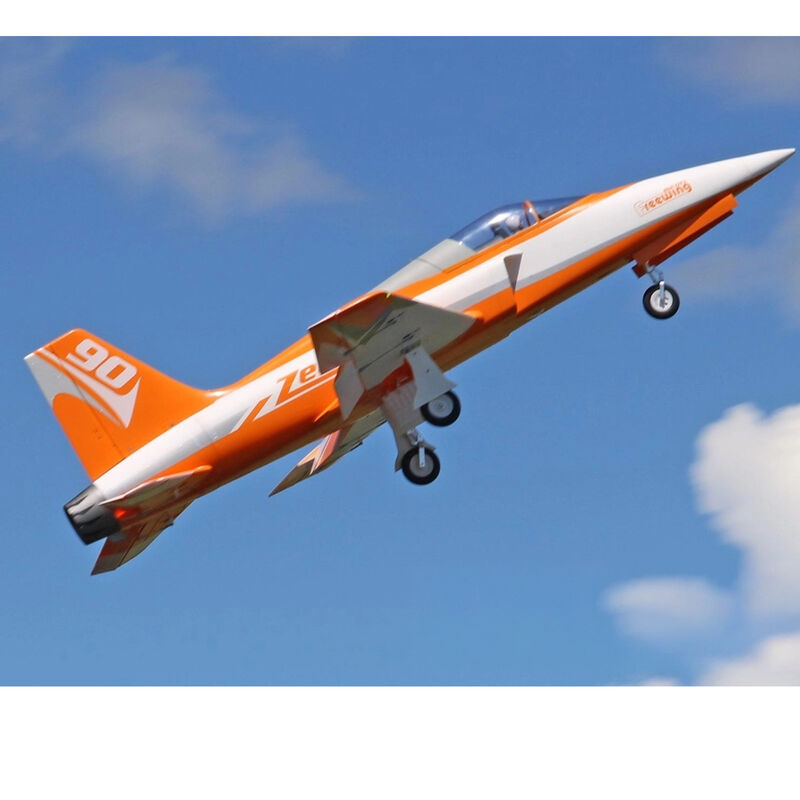

The Zeus has fully sequenced gear doors, including inner main gear doors for lower drag and better sport jet performance.
Our fastest 6S sport jet yet, capable of speeds of 130mph (210kmh) in level flight
Sleek, aerodynamic design for incredible sport jet performance
Quick release main wings provide a simple and easy process for installing and removing the wings
CNC-machined landing gear struts with trailing link design for better grass-field operations
Daylight-bright LED lights located on the wing tips, top and bottom of the fuselage and a landing light on the nose gear strut
12-blade, factory-balanced EDF combined with a 3668-1960Kv (6S) or 4075-1350Kv (8S) brushless inrunner motor for top end EDF jet performance and great sound
120 Amp ESC with 8A UBEC with thrust reversing
(7) 17g, digital, metal gear metal gear servos for all control surfaces
(2) 9g, digital, hybrid metal gear servos for nose gear steering and nose gear doors
Fully sequenced gear doors, including inner main gear doors for lower drag and better performance
Nylon hinges on all control surfaces
Includes:
Freewing Zeus Orange 90mm 6S EDF Sport Jet - PNP
12-Blade EDF power system (installed)
3668-1960Kv brushless inrunner motor (installed)
120A ESC with reverse thrusting and EC5 connector (installed)
Electronic retractable landing gear (installed)
Servos, LED Lights (installed)
Requires:
7 Channel radio
7 Channel receiver
6 Cell 22.2V 5000 mAh LiPo battery with EC5 connector
6 Cell compatible battery charger
| Specification | Details |
|---|---|
| Model Scale | N/A |
| Wingspan | 1200mm (47.24in) |
| Length | 1450mm (57.08in) |
| Empty Weight | 2820g (99.47oz) without battery |
| Center of Gravity (CG) | 120mm (4.7") from the leading edge of the wing at the root |
| Power System | 6S 3668-1960Kv Brushless Inrunner Motor |
| Electronic Speed Controller | 120A Thrust Reversing ESC with EC5 Connector |
| EDF Unit | 90mm 12-Blade EDF |
| Servos | • 9g Metal Gear Hybrid Digital (600mm lead) – Nose Gear Steering • 9g Metal Gear Hybrid Digital (800mm lead) – Nose Gear Door • 17g Metal Gear Digital (100mm lead) – Rudder • 17g Metal Gear Digital (200mm lead) – Left Elevator & Left Flap • 17g Metal Gear Digital Reverse (200mm lead) – Right Elevator & Right Flap • 17g Metal Gear Digital (400mm lead) – Left & Right Ailerons |
| Landing Gear | Electronic Retractable Main Gear with Steerable Nose Gear and All-Metal Shock Absorbing Struts |
| Required Battery | 6S 22.2V 5000mAh LiPo with EC5 Connector (Required) |
| Required Radio | Minimum 7 Channels |
| Control Surfaces | Ailerons, Elevator, Rudder & Flaps |
| Lights | Yes |
| Hinge Type | Nylon Reinforced |
| Material | High-Density EPO Foam |
| Skill Level | Intermediate |
| Estimated Build Time | Approximately 1 Hour |
| Recommended Flying Environment | Outdoor, 150+ ft (45m+) paved runway or short manicured grass |
