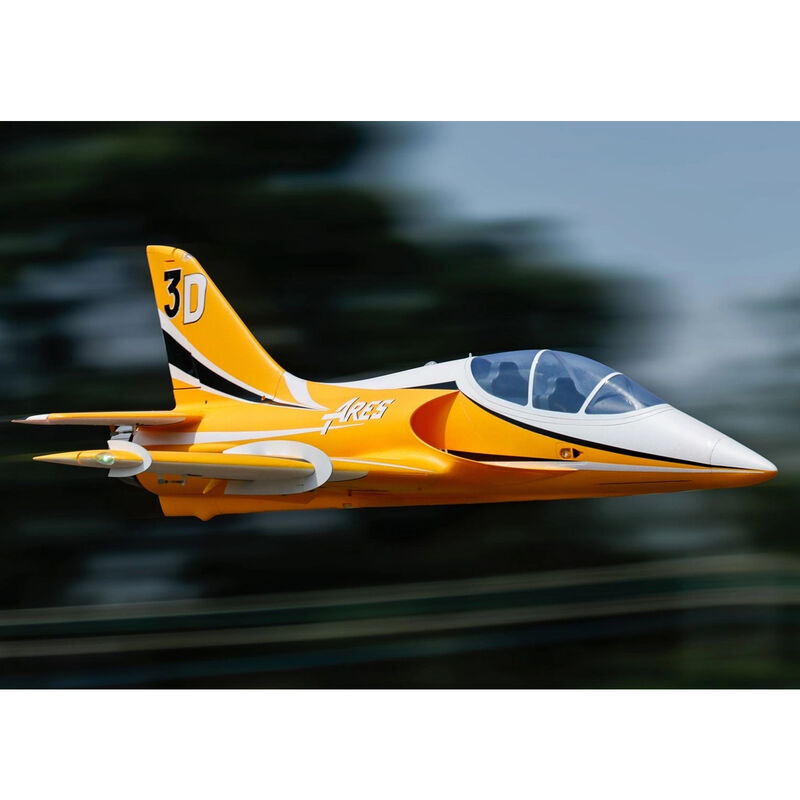

The Ares 90mm EDF Jet features thrust vectoring, enhancing the performance to include extreme 3D aerobatics, featuring cobras, flat spins, pinwheels and more Its second-generation, dual-axis thrust vectoring system features a redesigned nozzle structure that reduces thrust loss from 35% to less than 6%, delivering more usable power for post-stall maneuvers
Every detail of the Ares is built with the aerobatic expertise of Sebastiano Silvestri in partnership with Freewing to provide a jet designed for serious 3D flying
Twin onboard gyros provide enhanced stability, with one optimizing the control surfaces and the other optimizing the thrust vectoring for advanced aerobatic maneuvers
The gyro gain can be proportionally adjusted using a knob or slider to suit individual preferences, and a separate mode switch can be assigned for simple on/off control
Quick-release wings with auto-connect wiring make field assembly fast and convenient
The integrated 7-light LED system enhances orientation and flight awareness, helping pilots maintain control during complex maneuvers.The flap geometry allows optional, user-programmed flap-aileron mixing for increased roll authority at slow speeds
Wing fences improve airflow attachment and add side area for enhanced knife-edge performance
The high-power EDF setup, including a 3668-1960Kv inrunner motor, 12-blade fan, and 120A ESC with thrust reversing, delivers both raw power and precise control
The adjustable CG weight system allows pilots to fine-tune the jet’s balance for optimal performance in 3D or forward flight
Plastic-cladding protect high-wear areas from damage for long-lasting durability
No bare foam! The Ares comes fully painted, including the white areas, for an improved appearance and professional finish
Durable, retractable landing gear features CNC-machined, shock-absorbing struts and a reinforced nose gear to ensure reliable takeoffs and landings
Includes:
Freewing Ares 3D Yellow High Performance 6S 90mm EDF Jet - PNP
3668-1960Kv Brushless, Inrunner Motor (Installed)
120A Brushless ESC with thrust reversing and EC5 connector (Installed)
Servos (Installed)
Instruction Manual
Requires:
13 Channel radio (if using thrust reversing, both gyro controls, and flaps that can be used with the ailerons)
13 Channel receiver (if using thrust reversing, both gyro controls, and flaps that can be used with the ailerons)
1x 6 Cell 5000mAh to 6000mAh LiPo battery with EC5 connector
6 Cell compatible battery charger
| Model Scale | N/A |
| Wingspan | 1156mm / 45.5in |
| Length | 1400mm /55.1in |
| Empty Weight | 2626g / 5lb 13oz (w/o battery) |
| CG (Center of Gravity) | 122mm aft from the leading edge of the wing at the root |
| Power System | 6S 3668-1960Kv Inrunner Brushless Motor |
| Electronic Speed Control | 120A thrust reversing, EC5 Connector |
| Propeller / EDF | 90mm 12-Blade EDF |
| Servos |
|
| Landing Gear | Retractable landing gear with CNC-machined aluminum, shock absorbing struts |
| Required Battery | 1x 6S 22.2V 5000-6000mAh LiPo with EC5 Connector (required) |
| Required Radio | 13+ channels (for separating the flaps, 2x gyro adjustments, and thrust reversing) (required) |
| Ailerons | Yes |
| Elevator | Yes |
| Rudder | Yes |
| Flaps | Yes |
| Lights | Yes |
| Hinge Type | Nylon |
| Material | EPO Foam |
| Skill Level | Advanced |
| Build Time | 1 Hour |
| Recommended Environment | Short grass or hard surfaces like asphalt or concrete |
