ARF version with servos fully installed. Motor,battery and ESC are not included.
Includes:

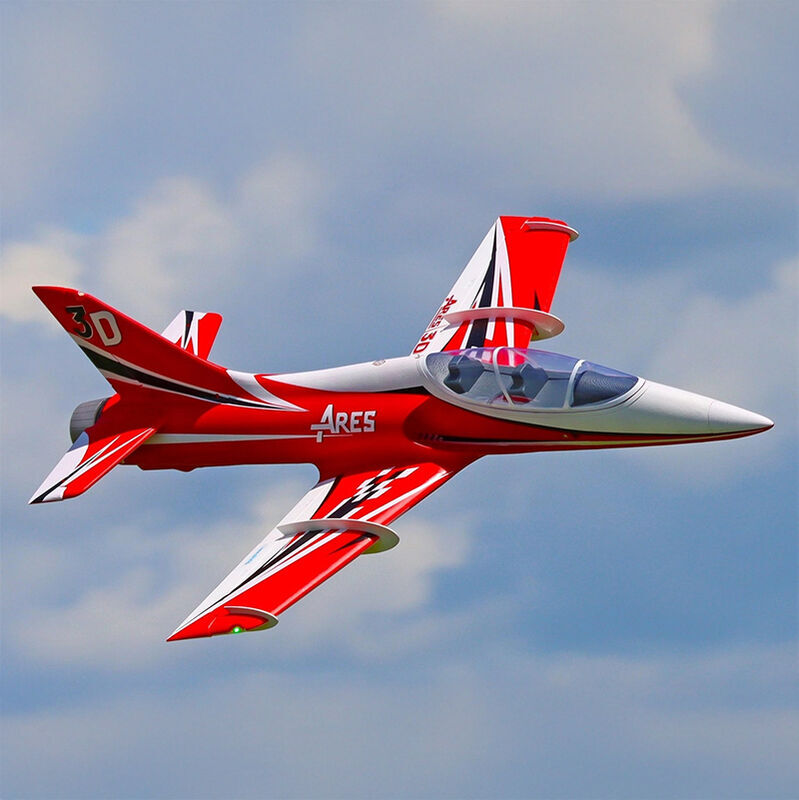

Freewing Ares 3D Red High Performance 90mm EDF Jet - ARF
Servos (Installed)
Instruction Manual
Requires:
3668-1960Kv Brushless, Inrunner Motor
120A Brushless ESC with thrust reversing
13 Channel radio (if using thrust reversing, both gyro controls, and flaps that can be used with the ailerons)
13 Channel receiver (if using thrust reversing, both gyro controls, and flaps that can be used with the ailerons)
1x 6 Cell 5000mAh to 6000mAh LiPo battery with EC5 connector
6 Cell compatible battery charger
| Model Scale | N/A |
| Wingspan | 1156mm / 45.5in |
| Length | 1400mm /55.1in |
| Empty Weight | 2626g / 5lb 13oz (w/o battery) |
| CG (Center of Gravity) | 122mm aft from the leading edge of the wing at the root |
| Propeller / EDF | 90mm 12-Blade EDF |
| Servos |
|
| Landing Gear | Retractable landing gear with CNC-machined aluminum, shock absorbing struts |
| Required Radio | 13+ channels (for separating the flaps, 2x gyro adjustments, and thrust reversing) (required) |
| Ailerons | Yes |
| Elevator | Yes |
| Rudder | Yes |
| Flaps | Yes |
| Lights | Yes |
| Hinge Type | Nylon |
| Material | EPO Foam |
| Skill Level | Advanced |
| Build Time | 1 Hour |
| Recommended Environment | Short grass or hard surfaces like asphalt or concrete |
